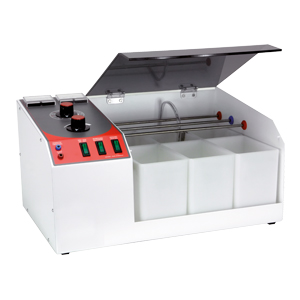

Electroplating unit Comfort II

The electroplating unit Comfort II is designed for universal use with all the usual electroplating baths e.g. for electronic degreasing, colour-gilding and gold-plating baths, polished silver and rhodium baths, palladium or ruthenium baths etc. Also non-precious-metal baths such as copper or nickel can be treated. Heating and goods movement are separately controlled.

Scope of delivery:
- Comfort II electroplating unit
- Folding housing cover
- 6 plastic trays made of PP (3 working and 3 rinsing trays á 1.5 L)
- Integrated analogue timer
- Temperature sensor with titanium holder
- Safety protection power cable

Technical details:
Voltage: continuously adjustable from 0 to 15 V
Continuous rating: max. 15 A
Temperature regulator: continuous 0 to 100 °C
Fusible cutout: 2.5 A
Overload cutout: automatic cutout 1 A
Goods movement: horizontal in all 6 baths
Anode- and cathode rods removable
Connection for rod electroplating: 2x (tweezers + rod)
Power connection: 230 V / 50 Hz
Weight: 15,5 kg
Dimensions (B x D x H): 480 x 330 x 260 mm
