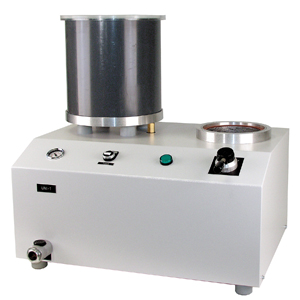

Vacuum – casting unit Uni - 1
Small, compact vacuum casting unit with integrated vacuum bedding system for perforated
cuvettes with collar. The integrated vacuum pump ensures bubble-free embedding and is a
reliable vacuum generator for first-class vacuum mouldings.
With a casting capacity of 3000 g of gold and 2500 g of silver, the Uni - 1 is ideal for pattern
workshops or for any places where small commissions can be cast quickly. Due to its compact
design, the space taken up by the Uni - 1 is extremely small.
Technical details:
Embedding cylinder: Ø 250 x H 250 mm
Cuvette size: Ø 70 - 125 x H 220 mm
Moulding capacity: 3 kg gold, 2500 g silver
Suction power: 6m³/h, 2 mbar end pressure
Output: 375 watts
Small, compact vacuum casting unit with integrated vacuum bedding system for perforated
cuvettes with collar. The integrated vacuum pump ensures bubble-free embedding and is a
reliable vacuum generator for first-class vacuum mouldings.
With a casting capacity of 3000 g of gold and 2500 g of silver, the Uni - 1 is ideal for pattern
workshops or for any places where small commissions can be cast quickly. Due to its compact
design, the space taken up by the Uni - 1 is extremely small.
Technical details:
Embedding cylinder: Ø 250 x H 250 mm
Cuvette size: Ø 70 - 125 x H 220 mm
Moulding capacity: 3 kg gold, 2500 g silver
Suction power: 6m³/h, 2 mbar end pressure
Output: 375 watts
namevacuum casting unit
additionbedding-in unit
Versioncombined
typeUni - 1
output375 watt
item No.604040
