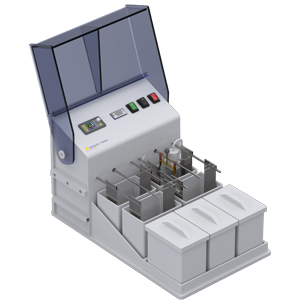

Compact electroplating unit PGG 10 flex 1,5 l + rinssing block

The PGG 10 flex compact electroplating unit is ideally suited for electroplating small individual parts. The unit module equipped with a 10 V/10A rectifier has a modular design and can be expanded by one support unit module each on the left or right side and each module unit by a rinsing unit. All modules use the rectifier from the main unit.

Each module offers up to 4 actively operable process tanks. The unit housing is designed in such a way that two process tanks can be optionally equipped with a magnetic agitator.

Features:
• 1 PVC housing, white, with cover hood
• 1 Thermostatic control unit 0-80°C
• 1 Rectifier digital 10 V/10 A, RW < 0,5%
• 2 Cathode rod movements
• 2 Processing tanks 1.5 litres with lid
• 2 Rinsing tanks 1.5 litres with lid
• 1 Rinsing block incl. 3 PPH tanks 1.5 litres and 3 PPH lids

Technical data:
Rated voltage: 230 V/50 - 60 Hz
Rectifier: digital
Residual ripple: < 0.5%
Thermostatic control unit: 0 - 80 ºC
Dimensions (W x H x D): 380 x 350 x 580 mm
Weight: 11 kg
