Roxer Natator
Waterproof testing unit Previous product 2/2 Next product
Waterproof testing unit Roxer Natator 125

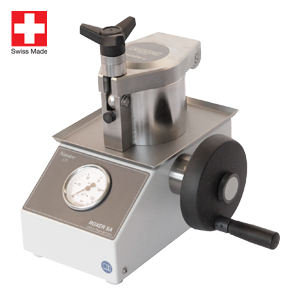

The Natator 125 is an independent waterproof tester of Roxer and works without a connected compressor. The apparatus is ideal for testing the water tightness of individual pieces and in customer service. Through the handwheel and the built-in pressure gauge a pressure can be built up to 125 bar. No supply lines are required for the device.
The Natator 125 consists of a stainless steel container into which the test watch is applied. Once the container is completely filled with water, the lid is locked. Using the side-mounted handwheel a pressure of up to 125 bar is easily built up.
Technical data:
Measuring range: 0 - 125 bar (1.250m)
Test chamber-Ø: 80 mm
Test chamber hight: 65 mm
Content: 330 ml
Dim. (L x W x H): 310 x 300 x 300 mm
Weight: 12.000g
The Natator 125 is an independent waterproof tester of Roxer and works without a connected compressor. The apparatus is ideal for testing the water tightness of individual pieces and in customer service. Through the handwheel and the built-in pressure gauge a pressure can be built up to 125 bar. No supply lines are required for the device.
The Natator 125 consists of a stainless steel container into which the test watch is applied. Once the container is completely filled with water, the lid is locked. Using the side-mounted handwheel a pressure of up to 125 bar is easily built up.
Technical data:
Measuring range: 0 - 125 bar (1.250m)
Test chamber-Ø: 80 mm
Test chamber hight: 65 mm
Content: 330 ml
Dim. (L x W x H): 310 x 300 x 300 mm
Weight: 12.000g
nameWaterproof testing unit
Test area0 - 125 bar
manufactureRoxer
typeNatator 125
item No.609473
