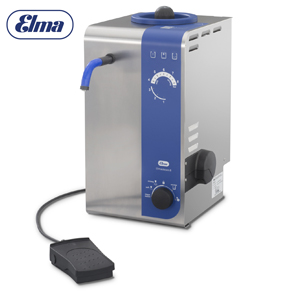

ElmaSteam 8 basic

The Elmasteam 8 basic is perfect for all pre-cleaning and final cleaning applications in the watch and jewellery business and in the general workshop. The stainless-steel surface of the casing is easy to clean.The pressure tank can be filled by hand through the filling duct on the unit top, or automatically by means of a pump from the tap or from a canister. The unit indicates the optimum filling level and gives a visual warning when the pressure tank has run empty.

It also indicates when the pressure tank must be decalcified. An integrated decalcification programme with easy-to-carry out steps makes this a simple job.

The Elmasteam 8 is easy to operate, all functions are selected and activated by turning and pressing a button. The unit automatically switches into the Eco mode, the operating pressure is reduced to 3 bar.Lock mode for operating pauses, hand piece and foot switch are deactivated.

Product features:
• 3 years warranty
• 2 pressure ranges selectable for specific applications:
(soft 4-6 bar or strong 6-8 bar)
• Stable team availability through strong heating power
• Compressed air for blowing off/blowing out workpieces
• Perfect for the use in small-space workshops
• Pump for filling from tap or from a special Elma canister
• Safety device for operating with pump: indicates when the pump cannot be activated
• Intelligent pump control to avoid idle phases due to refilling
• Automatic Eco mode; environment-friendly and cost and energy saving
• Adjustable lock mode for enhanced operator safety

Technical data:
Operating pressure: 8 bar
Filling volume: 3.8 litres
Operating temperature: 160 °C
Power consumption: 3.120 watt
Dimensions (W x D x H): 285 x 350 x 520 mm
Weight (empty): 20 kg

Scope of delivery:

ElmaSteam 8 basic with pump, fixed nozzle and compressed air connection, tweezers, sieve, maintenance hose, rinsing set, safety screw cap with 3 exchange sealing rings, measuringstrips.

• ElmaSteam 8 basic brochure
