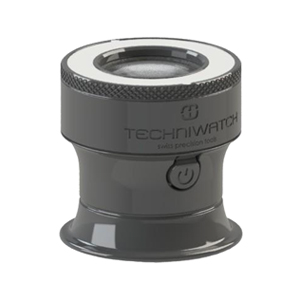

PureVision LED Watchmaker's Loupe 4x - Precision Loupe with Induction Charging

The PureVision LED watchmaker's loupe offers a professional solution for high-precision tasks where the smallest details matter. Equipped with 4x magnification and integrated high-power LED lighting, this innovative loupe ensures optimal illumination of the workspace. Thanks to the significant reduction in reflections, the optical system delivers exceptionally high image contrast, which demonstrably reduces eye strain even during long working hours.

With an extremely low weight of just 30 grams, the loupe is modeled after classic watchmaker's eyeglasses, guaranteeing maximum freedom of movement and outstanding wearing comfort.

The PureVision LED loupe has been specifically developed for demanding inspection processes
• Efficient dust and particle detection: Fine contaminants on watchmaking components, movements, or sub-assemblies can be located quickly and reliably.
• Component inspection in dark environments: The integrated LEDs enable precise inspection of components in hard-to-reach or unlit areas, such as the interior of machine tools.

Intelligent light control and intuitive operation via two different modes
• Manual mode: The light is switched on and off specifically as required.
• Intuitive mode: Integrated position sensors automatically detect whether the loupe is actively in use. If the tool is placed lens-down on the workbench, the LED lighting automatically switches to standby mode. As soon as the loupe is picked up again, the light turns back on instantly. The system also switches off automatically when placed back onto the charging station.

Additionally, the watchmaker's loupe features a brightness adjustment program, allowing the light intensity to be customized to the respective ambient conditions.

Wireless induction technology for maximum flexibility
The PureVision loupe is powered by a built-in 256 mAh lithium-polymer battery, which ensures a continuous runtime of one hour at full power. Recharging is completely wireless via the included induction charging station. Thanks to the integrated quick-charging function, the battery is recharged to 80% in approximately 30 minutes.

Technical data:
Magnification: 4x
Material: High-quality synthetic material
Dimensions: Ø 39 mm, Height: 39 mm
Weight: 30 g
Power supply: Built-in lithium-polymer battery (256 mAh)
Battery life: 1 hour at maximum power
Charging method: Inductive charging (wireless) via USB-C station
Charging time: Quick charge to 80% in approx. 30 minutes

Scope of delivery: PureVision watchmaker's loupe, induction charging station, USB to USB-C charging cable (length: 1 meter) (A matching holding wire No. 512409 for fixing the loupe to the eye is optionally available)

Product Care Notice:
To clean the optical lens, the use of a clean microfiber cloth is recommended to prevent scratches and maintain maximum transparency over the long term.
