Watch cleaning machine
Watch cleaning machine

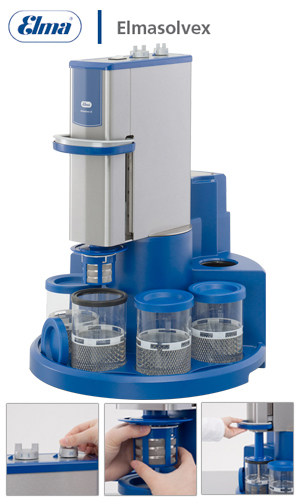

Elmasolvex SE - manual watch cleaning machine
Multiple-chamber technology for solvent and aqueous cleaning TÜV certified Ex-protection.
Can a classic be invented again?
• TÜV-certified explosion safety
• now with 4 cleaning chambers and one heating chamber (fine filter warm air technology)
• manual operation with latching in the working heights and above the media container positions
• service-friendly and easy-to-care for design
• maximum personnel safety due to connection of the machine to controlled exhaust air routing
• basket frame for five baskets, optional holder for circuit boards
• wide range of practical accessories; see accessories online
Process:
Rotation process
Solvent Cleaning:
flashpoint from > 12°C, e.g. Bontech R and S or Elma wf and suprol + drying
Semi-aqueous combination process:
e.g. Elma 1:9, demineralised water, 2x elma suprol + drying
Scope of delivery:
1x Elmasolvex SE cleaning unit
4x cleaning glasses
4x glass jar including seal
4x wavebreaker
*** The cleaning baskets must be ordered separately ***
Specifications:
Media container capacity: 4x 0,6 litres
Cleaning basket diameter: 64mm
Exhaust air connection: DN 75 (passive)
Power consumption: 260 watts
Dimensions (Ø x H): 525 x 650 mm
Weight: 19kg
