Encore QCX setters package
Encore QCX package
BenchMate Encore QCX setter's package
The next generation of workholding tools for setters, incl. handrest, used on both sides for right and left handers and height adjustment.
The new Encore QCX workholder can be rotated freely in all directions, the workpiece is always the center remains in position. The additional height adjustment allows you a quick height adjustment when working example under a microscope. The large curved arm allows you have better access to the workpiece. By means of a locking screw can adjust the resistance. The handrest with quick-locking device, can be mounted and removed simply and easily on both sides.

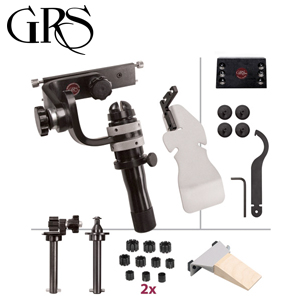

Scope of supply:
- 1x workholding tool with height adjustment Encore QCX
- 1x mounting plate for mounting on the angle plate
- 4x protective jaws
- 2x wrenches
- 5x mounting screws
- 1x bench pin kit
- 1x horizontal I.D. ring holder
- 1x vertical I.D. ring holder
- 20x plastic inserts
(each 2 pcs.) 13,5 - 14,5 - 15,5 - 16,5 - 17,5 - 18,5 - 19,5 - 20,5 - 21,5 - 22,5mm
Weight: 4700 g
GRS: 004-832
nameEncore QCX package
VersionSetter package
systemBenchMate
GRS004-832
item No.509454
