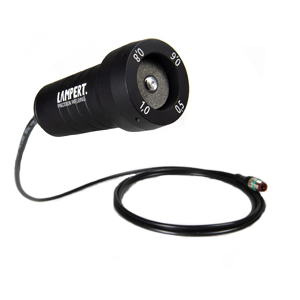

PUK electrode grinding motor

The new grinding motor is a helpful accessory for every PUK welding device. The electrodes can be easily resharpened in the right angle using the suitable pilot hole in the diameter 0.5, 0.6, 0.8 or 1.0 mm.

Durable diamond grinding wheel:
Replacement discs are available as accessories and can be changed with ease with the aid of the Allen key provided.

Simple and safe handling:
When grinding the electrode tips the electrodes are held onto the rotating diamond disc at a preadjusted angle of 15° and turned between the fingers. The diamond disc is securely embedded in a stable aluminium housing, so that only the front of the grinding surface is accessible.

Connection directly to the welding unit:
The grinding motor can be mounted directly on the PUK 6 welding unit (older units require T-connector no. 695499). The motor is switched on by means of a button on the side of the housing.

Technical details:
Speed: 11000 rpm.
Power consumption: max. 6 watt
Dimensions (max. Ø x L): 34 x 76 mm
Weight: 200 g
