prismatic jaws, pair PVC
zum Einspannen großdimensionierter Werkstücke von Ø 13-40mm.
prismatic jaws

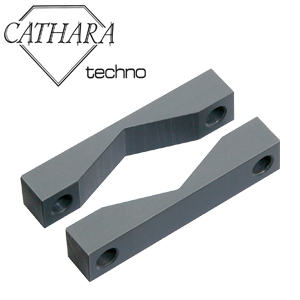

Prismatic jaws PVC Cathara
For the use of these prismatic jaws the extension screws are required. To clamp profiles with a very large cross-section, so-called prismatic jaws are required. I order to be able to open the cutting jig accordindly wide, the original fitting screws have to be replaced by a longer version, which is made possible quite easily by the fact that the cutting jigs can be dismantled. Profile sections with Ø 13-40 mm can now be clamped at right angles in the cutting jig, filed flat and to size.
The prismatic jaws are useful for cutting off curved segments or entire rings. Made of plastic, they provide ecellent support for the previously produced wire winding without damaging it. Even large-dimensioned wax profiles can be clamped and processed at right angles when using the prismatic jaws.
Technical data:
Dimensions (L x W x H): 59 x 20 x 11 mm
Weight: 15 g
For the use of these prismatic jaws the extension screws are required. To clamp profiles with a very large cross-section, so-called prismatic jaws are required. I order to be able to open the cutting jig accordindly wide, the original fitting screws have to be replaced by a longer version, which is made possible quite easily by the fact that the cutting jigs can be dismantled. Profile sections with Ø 13-40 mm can now be clamped at right angles in the cutting jig, filed flat and to size.
The prismatic jaws are useful for cutting off curved segments or entire rings. Made of plastic, they provide ecellent support for the previously produced wire winding without damaging it. Even large-dimensioned wax profiles can be clamped and processed at right angles when using the prismatic jaws.
Technical data:
Dimensions (L x W x H): 59 x 20 x 11 mm
Weight: 15 g
nameprismatic jaws
VersionPVC
PU1 pair
manufactureCathara
item No.502049
