extension screws
zur Verwendung der Prismenbacken.
extension screws

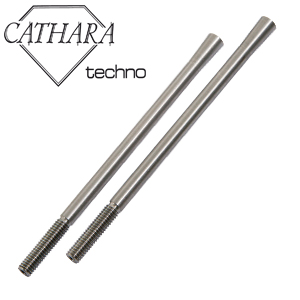

Extension fitting screws Cathara
These extension fitting screws are required in conjunction with the prismatic jaws. For clamping profiles with a very large cross-section, so-called prismatic jaws are required. In order to be able to open the cutting jig accordingly wide, the original fitting screws have to be replaced by a longer version, which is made possible quite easily by the fact that the cutting jigs can be dismantled. Previously cut to length profile sections with Ø 13-40 mm can now be clamped at right angles in the cutting jig, filed flat and to size.
Technical data:
Dimensions (L x W x H): 118 x 12 x 7 mm
These extension fitting screws are required in conjunction with the prismatic jaws. For clamping profiles with a very large cross-section, so-called prismatic jaws are required. In order to be able to open the cutting jig accordingly wide, the original fitting screws have to be replaced by a longer version, which is made possible quite easily by the fact that the cutting jigs can be dismantled. Previously cut to length profile sections with Ø 13-40 mm can now be clamped at right angles in the cutting jig, filed flat and to size.
Technical data:
Dimensions (L x W x H): 118 x 12 x 7 mm
nameextension screws
Versionfor prism jaws
PU1 pair
manufactureCathara
item No.502039
