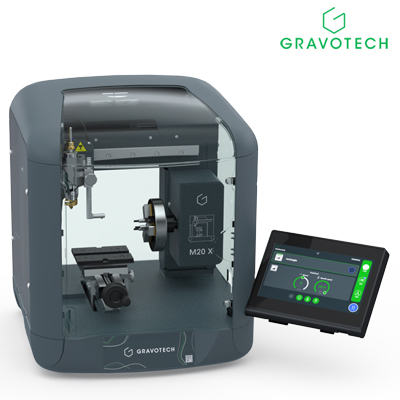

Gravotech M20X Jewel Engraving Machine

The new compact M20X engraving machine is the ideal solution for the external and internal engraving of rings, jewellery engraving and pendants, the personalisation of gift items and the engraving of photos or logos. The M20 X Jewel can also be used to produce small pieces of jewellery.

The touch screen, the last innovation, guides you through the engraving process step by step, making the M20 X the best user-friendly machine. You can manage the engraving queue on the screen to start engraving any projects you want. Many accessories and features are available as options to engrave easily: jigs, cutting table, Gravogrip table, Point & Shoot (for precision) and automatic Z axis. You can also send your jobs effortlessly to the machine thanks to the Wi-Fi connection (optional).

Smart touch screen
Manage easily and quickly every step of the engraving process through the screen:
• Check out the preview before starting to engrave
• Adjust engraving settings with ease
• Manage the engraving queue as you wish
The M20 X adapts to its environment, the screen can be placed on top or on the right side of the machine according to your use.

Properties:
• Surface tracking with the depth nose
• Automatic detection of the object height
• More volume: Z-axis up to 100 mm (also for large objects)
• Self-centring vice
• Automatic Z-positioning
• Point & Shot: Simple engraving positioning with laser pointer
• Engraving simulation with laser pointer
• Interface: USB / LAN / Wi-Fi (optional)
• Diamond or milling engraving
• Large selection of engraving tools

Technical data:
Engraving area: 100 x 100 x 30 mm (x/y/z)
Max. Object size: 190 x 110 x 100 mm
Inner ring engraving: Ø 12 - 27 mm / width 3 - 9 mm
Outer ring engraving: Ø 13 - 28 mm / width 3 - 18 mm
Speed: 40 mm/s
Tool holder: 4.36 mm
Dimensions (W x D x H): 350 x 375 x 360 mm (with housing H 405 mm)
Weight: 12.9 kg

Scope of delivery:
Gravotech M20X Jewel engraving machine, flat engraving module, diamond for flat engraving, rotary axis for external and internal engraving of rings, 7’ touchscreen

**The Gravostyle software is not included in the scope of delivery and must be ordered separately.
