Starter Package Jeweler “Engraving System M20V3”

Save up to 10% with the starter pack, compared to the single composition.

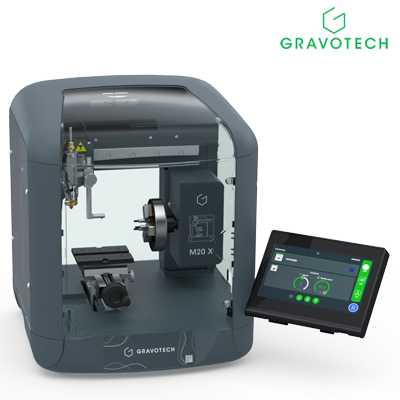

The new compact M20 V3 engraving machine is the ideal solution for jewelry, engraving plates and personalization. Thanks to the modular design, the engraving machine can be adapted to your needs. More power through increased engine power with improved stability and ergonomics, ensuring optimal engraving results.

Characteristics:
• Modular construction, which can be extended at any time
• More volume: Z axis up to 100 mm (even large objects can now be engraved)
• Self-centering vise
• Automatic Z positioning
• Point & shoot simple engraving positioning by laser pointer
• Gravure simulation by laser pointer
• Illuminated work area
• Interface: USB and Bluetooth
• Tablet option
• Diamond or milling engraving
• Large selection of engraving tools

Technical specifications:
Engraving area: 100 x 100 x 30 mm (x / y / z)
Max. Object size: 180 x 110 x 100 mm
Speed: 35 mm/s
Tool holder: 4.36 mm (now also compatible with
TwinCut milling cutters with a larger selection of tools)
Dimensions (W x D x H): 345 x 370 x 380 mm
Weight: 12 Kg

Scope of supply:
Gravograph M20V3 combi engraving machine, GravoStyle 8 Discovery Software, Font Pack 3 (additional font pack), flat engraving module, inner ring engraving module, diamond for flat engraving, diamond for ring inside engraving, TwinCut starter set (steel cutters).

Package compilation:
• Engraving machine M20V3 jeweler No. 689075
• Gravostyle 8 Discovery Software No. 689062
• FontPack 3 (package of 105 fonts) No. 689059
• Starter package TwinCut milling cutter incl. tool holder No. 689076
• 3-pack TwinCut cutter inserts 0.50mm No. 689077
• Engraving diamond spindle attachment No. 690045

• Gravotech M20V3 operating instructions
