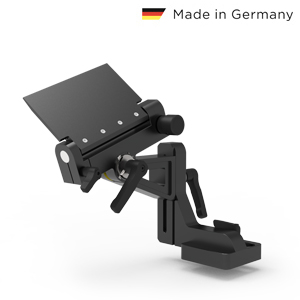

Support table for laping machine WELLNER MFS

The developed table is adjustable in 5 axes for different grinding directions. The table inclination is freely adjustable from -90° to 0° and the contact angle from 60° to -40°. In addition, the working height at the table can be adjusted, the pre-tensioned joints and clamping levers protect against sagging or loosening of the fastening. The support table is fixed in a guide on the base plate of the lapping machine by means of a knurled screw.

Technical Details:
Dimensions (W x D x H): 240 x 140 x 160 mm
Weight: 2600 g
