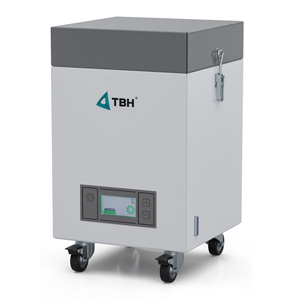

Extraction and filter unit BF 10



Compact saturation filter system equipped with differential pressure monitored filter elements to ensure the required separation efficiency. The use of low-noise blowers enables operation even in sensitive environments. Also ideally suited for continuous operation.

Advantages:
- low-noise operation due to special fan
- incl. initial filter equipment
- easy filter change
- Control interface with basic functions

Fields of application:
- soldering operations
- laser processing
- Working processes with sticky/moist dusts
- Working processes with vapours/gases

Technical data:
Air volume flow free blowing: max. 250 m³/h
Effective air volume flow: 20 - 200 m³/h
Protection class: 1
Sound level: 62 dB(A)
Filter: Pre-filter and 2-stage filter (particle + activated carbon filter)
Suction nozzle NW50: 2 pieces, rear side
Dimensions (H x W x D): 510 x 300 x 300 mm
Weight: 24 kg

nameextraction unit

workstations> 2

suction performance250 m3/h

modelBF-10

manufactureTBH

item No.694211
