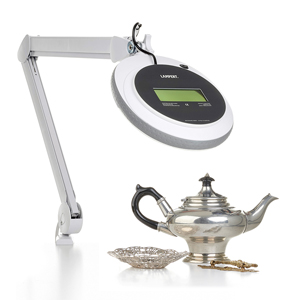

PUK - optic unit

LED illuminated magnifiers unit - for very large workpieces with integrated LCD eye protection system for attachement to a PUK.
Allows safe operation even without a microscope, for example, when welding on large very bulky workpieces.

The PUK optical unit with its integrated LCD welder Sichtschutzfilter provides reliable protection from UV / IR radiation, sparks and splashes in the bright and in the dark stage. The protection level of the filter is defined such that a glare is prevented by the arc. Shortly before an arc is ignited, the electronics of the PUK fine welding device switches the filter of level DIN 3 to dark state DIN 11. secure Immediately after the arc extinction of the filter will be bright again.

*** The PUK optical unit may only be used in conjunction with a PUK ***

Technical specifications:
Switching time: &<50 ms
Magnification: 2.25x (5 diopters)
Bulb: LED (glare-free light)
Light / dark stage: DIN3 / DIN11
UV / IR protection: UV11 / IR11
Voltage: 230 V / 50 Hz
