Moebius Epilam Fixodrop ES

Almost all cases of uncontrolled oil-spread can be combated by the use of Fixodrop ES. Applying an epilam coating brings long-term assurance for minimum additional cost. It is indispensable if mechanisms have to remain functional with very thin, wide-temperature-range oils over a long period of time.

Fixodrop ES/BS was specially developed for the treatment of rubies, steel, brass and other metals. Suitable for mechanical watches and quartz movements of all sizes and designs.

Preparation:
Before the Fixodrop treatment, all parts must be cleaned and dried. This step is important and strongly influences the adhesion of the epilam. Fixodrop-treated anchor pallets should only be lubricated after a drying time of 1 to 2 minutes.

Application:
• Place the parts on the screen in the bottle.
• Close the lid.
• Turn the bottle upside down for 30s and shake gently to ensure the parts are well submerged.
• Turn the bottle back over and tilt it slightly to the side before opening it so that the liquid can flow out well.
• After immersion, let the parts drip off before removing them, after which they should be dried at approx. 60°C.

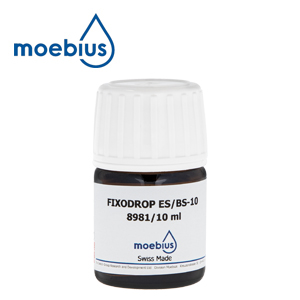

Product Name: Fixodrop ES / BS 8981 (formerly Fixodrop FK / BS 8941)

Technical data - solvent:
Active ingredient: fluorinated polyester
Solvent: fluorinated carbon
Density: 1.68 g/cm³
Boiling point: 56 °C
Flashpoint: non-flammable
Toxicity: non-toxic

Technical data - film:
Film thickness: approx. 0.01 – 0.05 µm
Surface tension: approx. 11 dyn/cm¹
Temperature resistant to 200 °C

• Fixodrop user guide
• Safety Data Sheet
• Technical Data Sheet
