Torsiometers
for testing the torque of screwdrivers.
torsiometer Previous product2/3Next product

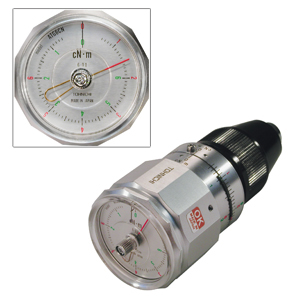

Torsiometer 0.6 - 6 Ncm
Gauge to check or measure the tightening torque of dynamometric screwdrivers.
Operating instructions:
1. Check that the srewdriver blade is well fixed with the screw
2. Release the screw located at the end of the screwdriver
3. Remove the tool-post by pulling on the hexagonal head
4. Insert the screwdriver in the torsiometer and tight the chuck
5. Adjust the torque setting by turning the screw with a screwdriver
6. Release the chuck on the torsiometer and remove the screwdriver
7. Lock the screw and reinstall the tool-post.
Specifications:
Torque: 0.6 - 6 Ncm
Graduation: 0.1 Ncm
Precision: +/- 2%
Bore: Ø 1,00 - 6,50 mm
Dimension (Ø x L): 42 x 105 mm
Weight: 200 g
*** Further Executions on request ***
BERGEON: 6951-C
Gauge to check or measure the tightening torque of dynamometric screwdrivers.
Operating instructions:
1. Check that the srewdriver blade is well fixed with the screw
2. Release the screw located at the end of the screwdriver
3. Remove the tool-post by pulling on the hexagonal head
4. Insert the screwdriver in the torsiometer and tight the chuck
5. Adjust the torque setting by turning the screw with a screwdriver
6. Release the chuck on the torsiometer and remove the screwdriver
7. Lock the screw and reinstall the tool-post.
Specifications:
Torque: 0.6 - 6 Ncm
Graduation: 0.1 Ncm
Precision: +/- 2%
Bore: Ø 1,00 - 6,50 mm
Dimension (Ø x L): 42 x 105 mm
Weight: 200 g
*** Further Executions on request ***
BERGEON: 6951-C
nametorsiometer
Torque0.6 - 6 Ncm
Accuracy0.1 cNm
seating Ø1-6,5 mm
item No.510902
