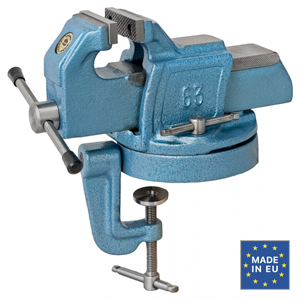

Precision vise with rotary plate and screw clamp

Precision vise with rectangular guide, replaceable and induction hardened jaws. Body made of cast iron, jaws, base and remaining parts made of alloy steel. Made in EU.

Features:
• With rectangular guide
• guide spindle cover against contamination
• replaceable steel jaws, induction hardened and precision ground
• vertical and horizontal recesses for holding round workpieces
• robust vise
• swivel plate can be fixed in any position
• incl. screw clamp for fastening

Technical data:
Jaw width (S): 63mm
Clamping width (a): 63mm
Clamping depth to spindle sleeve (h): 45mm
Other dimensions: (A) 120mm, (H) 131mm, (L) 228mm, (I) max. 42mm
Weight: 5000g
