Precision vise for screwing on

Precision vise with prismatic guide, replaceable and induction hardened jaws. Made of cast iron with rigid construction and high impact resistance. Made in EU.

Properties:
• with prismatic guide
• lead screw cover against contamination
• replaceable steel jaws, induction hardened and precision ground
• vertical and horizontal recesses for holding round workpieces
• robust vise for heavy-duty use
• fixed body and movable rear jaw
• for screwing to the front of the bench

Technical data:
Jaw width (S): 100mm
Clamping width (a): 100mm
Clamping depth to spindle sleeve (h): 51mm

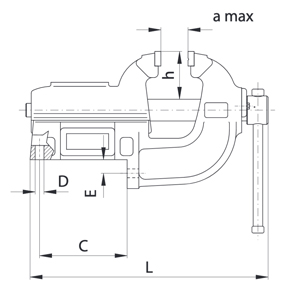

Other dimensions: (A) 115mm, (B) 85mm, (C) 87mm, (D) 9mm, (E) 16mm, (H) 140mm, (L) 250mm
Weight: 7400g
