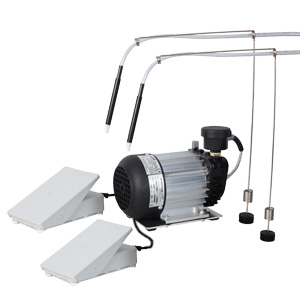

Slide-vane rotary vacuum pump VP-3 for double-workstation
Oilless slide-vane rotary vacuum pump with integrated suction filter and high suction
performance. Double-workstation system for vacuuming up dust, glass and dirt particles from watch and clock movements and dials. Easily extended to cover 2 - 3 workstations. The pump is fitted with a silencer for a maximum sound pressure level of 57db at 1 m distance, making possible almost silent and low vibration use at the workbench.
Technical details:
Dimensions (L x B x H): 280 x 120 x 160 mm
Max. flow volume: 3.2 / 4.0 m³/h
End vacuum: 150 mbar absolute
Max. vacuum in continuous operation: 250 mbar absolute
Current consumption: 180 watts
Nominal speed: 1400/1700 rpm
Weight: 9.450 g
Scope of delivery:
- 1x Vacuum pump VP-3 including suction filter
- 2x vacuum handpieces with nylon brushes white
- 2x 3 m PVC hose
- 2x foot controller.
namevacuum pump
typeVP-3
Versiontwo-place
motor output180 watt
suction performance4.0 m³/h
item No.611221
