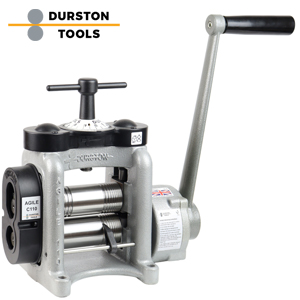

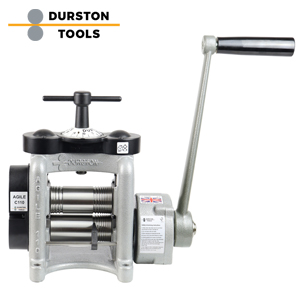

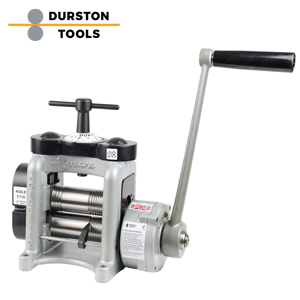

Combi Rolling Mill Durston Agile C110
Compact combination rolling mill that can be used for rolling both wire and sheet metal. The rolling mill is supplied with a reduction gearbox, which makes rolling sheet metal in particular much easier
Properties:

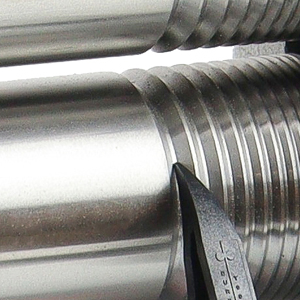

• Main rolls induction-hardened and fully supported
• Self-lubricating and completely maintenance-free
• New T-bar adjustment on the top side
• Ultimate strength for a lifetime of use with professional results
Technical data:

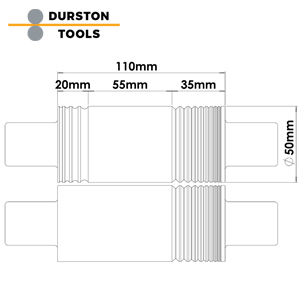

Roller length: 110 mm
Roller Ø: 50 mm
Sheet thickness: max. 5.5 mm
Sheet width: max. 50 mm
Square wire thicknesses: 1.2 - 4.5 mm
Wire grooves: 9
Half-round profiles: 2 - 3 - 4 - 5 mm
Wire capacity: max. 7 mm
Reduction ratio: 4:1
Dimensions (W x D x H): 345 x 200 x 320 mm
Weight: 26 kg
nameCombi Rolling Mill
VersionSheet material / Wire
Rolling mill width110mm
manufactureDurston
modelAgile C110
item No.605033
