Roxer Diabolic E
under vacuum.
leak tester

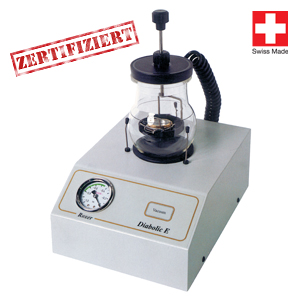

Waterproof testing unit Roxer Diabolic E
The built-in electric pump creates a vacuum so that the inside of the clock creates a vacuum from its surroundings. Thus in the clock itself exploiting dividend air is forced to escape into tiny bubbles to the outside. Even a small leak is visible without the risk of damaging the movement, the dial and the hands.
Features:
- Easy to use
- Secure identification of the leak by immersing the clock under vacuum
- compact device, no external pump is required
- Manometer for reading the vacuum
Specifications:
Measuring vacuum: 200-550 mbar
Detection level:> 50 µg7min.
Power: 175 Watts
Dimensions (L x W x H): 200 x 280 x 300 mm
Weight: 5.600 g
The built-in electric pump creates a vacuum so that the inside of the clock creates a vacuum from its surroundings. Thus in the clock itself exploiting dividend air is forced to escape into tiny bubbles to the outside. Even a small leak is visible without the risk of damaging the movement, the dial and the hands.
Features:
- Easy to use
- Secure identification of the leak by immersing the clock under vacuum
- compact device, no external pump is required
- Manometer for reading the vacuum
Specifications:
Measuring vacuum: 200-550 mbar
Detection level:> 50 µg7min.
Power: 175 Watts
Dimensions (L x W x H): 200 x 280 x 300 mm
Weight: 5.600 g
nameleak tester
Versionwith integrated pump
Measuring vacuum200-550 mbar
manufactureRoxer
typeDiabolic E
item No.611310
