    Cutters and Diamonds

    Gravotech cutters and diamonds for different working areas made of tool steel or carbide.

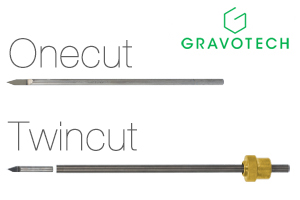

    Choose your area of application from two systems!

    OneCut (Long shank system)
    Ø 3.17 x L 106mm = suitable for Gravograph IM3, IM4 and M20 V2
    Ø 4.36 x 160mm = suitable for Gravograph M20 V3 and TXL

    TwinCut (Short shank system) two-piece system
    Ø 4.36 x L 15mm (insert) = suitable for Gravograph M20 V3 und TXL

    Hint: Always select a stroke width of 1/7 of the font height, e.g. for a font height of 3.0mm, a cutter with a font width of 0.32mm should be used.
    Subgroups
    • Milling of precious metals
      Standard conical cutters for milling precious metals (gold & silver), as well as Gravoply and Gravometals.
      nameGravotechVersionmeasurementØ x Litem No.
      Steel cutter48773Conical 22.5°0.10mm3.17 x 106 mm690028
      Steel cutter48774Conical 22.5°0.25mm3.17 x 106 mm690029
      Steel cutter48775Conical 22.5°0.32mm3.17 x 106 mm690030
      Steel cutter48776Conical 22.5°0.50mm3.17 x 106 mm690031
      Steel cutter48777Conical 22.5°0.75mm3.17 x 106 mm690032
      Steel cutter48778Conical 22.5°1.00mm3.17 x 106 mm690033
      Carbide cutter48793Conical 22.5°0.25mm3.17 x 106 mm690038
      Carbide cutter48794Conical 22.5°0.32mm3.17 x 106 mm690040
      Carbide cutter48795Conical 22.5°0.50mm3.17 x 106 mm690041
      Carbide cutter48796Conical 22.5°0.75mm3.17 x 106 mm690042
      Carbide cutter48797Conical 22.5°1.00mm3.17 x 106 mm690043
      Steel cutter48808Conical 22.5°0.10mm4.36 x 160 mm689140
      Steel cutter48809Conical 22.5°0.25mm4.36 x 160 mm689141
      Steel cutter48810Conical 22.5°0.32mm4.36 x 160 mm689142
      Steel cutter48811Conical 22.5°0.50mm4.36 x 160 mm689143
      Steel cutter48812Conical 22.5°0.75mm4.36 x 160 mm689144
      Steel cutter48813Conical 22.5°1.00mm4.36 x 160 mm689145
      Carbide cutter48608Conical 22.5°0.25mm4.36 x 15 mm689121
      Carbide cutter48609Conical 22.5°0.32mm4.36 x 15 mm689122
      Carbide cutter48610Conical 22.5°0.50mm4.36 x 15 mm689123
      Carbide cutter48611Conical 22.5°0.75mm4.36 x 15 mm689124
      Carbide cutter48612Conical 22.5°1.00mm4.36 x 15 mm689125
      carbide cutter50135Conical 30.0°0.25mm4.36 x 15 mm689091
      carbide cutter50136Conical 30.0°0.32mm4.36 x 15 mm689092
      carbide cutter50137Conical 30.0°0.50mm4.36 x 15 mm689093
      carbide cutter50138Conical 30.0°0.75mm4.36 x 15 mm689094
    • Milling of stainless steel
      ?Special conical cutters for milling stainless steel and other tough materials.
      nameGravotechVersionmeasurementØ x Litem No.
      Carbide cutter48608Conical 22.5°0.25mm4.36 x 15 mm689121
      Carbide cutter48629Conical 35.0°0.25mm4.36 x 15 mm689131
      Carbide cutter48630Conical 35.0°0.32mm4.36 x 15 mm689132
      Carbide cutter48631Conical 35.0°0.50mm4.36 x 15 mm689133
      Carbide cutter48632Conical 35.0°0.75mm4.36 x 15 mm689134
      Carbide cutter48633Conical 35.0°1.00mm4.36 x 15 mm689135
    • Clearing out surfaces
      ?
      Flat end milling cutters for clearing out surfaces (negative engraving). We recommend the use of cutting oil or cutting wax when using these cutters.
      nameGravotechVersionmeasurementØ x Litem No.
      Steel cutter48783cylindrical1.00mm3.17 x 106 mm690080
      Steel cutter48784cylindrical1.50mm3.17 x 106 mm690081
      Carbide cutter48619cylindrical1.00mm4.36 x 15 mm689150
      Carbide cutter48620cylindrical1.50mm4.36 x 15 mm689151
    • Milling out letters
      ?
      Cylindrical cutting cutter (double lip) for cutting out letters on name chains. We recommend the use of cutting oil or cutting wax when using these cutters.
      nameGravotechVersionmeasurementØ x Litem No.
      Carbide cutter48657cylindrical0.50mm4.36 x 15 mm689154
      Carbide cutter48658cylindrical1.00mm4.36 x 15 mm689155
    • Markierungsfräser
      nameGravotechVersionØ x Litem No.
      Marking cutter21679with ballpoint pen refill4.36 x 160 mm689115
    • Diamonds for engraving
      Fixed and rotating diamonds for incised and photo engravings.
      nameGravotechVersionmeasurementØ x Litem No.
      Diamond cutter33954standing 90°0.10mm3.17 x 106 mm690049
      Diamond cutter20149rotating 126.5°0.10mm3.17 x 106 mm690039
      Diamond Scribing insert23061standing 126.5°0.10mm3.17 x 15 mm689161
      Diamond Scribing insert23060rotating 120°0.10mm3.17 x 15 mm689160
      Diamond nose22884standing 126.5°0.10mm690045
      Diamond Scribing insert28187standing 126.5°0.10mm3.17 x 7 mm690070
    • swivel noses
      nameGravotechVersionHole-Øtypeitem No.
      swivel nose20130standard0.70mmM20 / IM3690164
      swivel nose20131standard1.50mmM20 / IM3690160
      swivel nose21755standard2.40mmM20 / IM3690161
      swivel nose22464with steel ball2.50mmM20 / IM3690162
      swivel nose22481mit PTFE-Kugel3.50mmM20 / IM3690163
    • Starter Package
      nameVersionmeasurementmaterialitem No.
      TwinCut cuttersstarter packageselectionfor jewellery689076
